Object-Oriented Programming

Class Stereotypes

Michael L. Collard, Ph.D.

Department of Computer Science, The University of Akron

Role of a Class

  • Classes serve a variety of roles
  • Good design: Each class fulfills a small number of roles in the system
  • Helps with design, comprehension, addition of new features, etc.
  • Purpose is not to label for label's sake, but to improve design
  • Note: Over the long term, even well-defined classes and roles tend to be mixed

Class Stereotypes

  • Explicitly mark the class with its primary role and purpose
  • Need a set of standard class stereotypes
  • Most common is CBE (Control, Boundary, Entity)
  • Classes also fulfill roles in Design Patterns

Qt Example

CBE: Boundary Class

  • Handle communication between external and internal parts of the system
  • External? User interfaces, external systems, external databases, etc.
  • Typically, a different boundary class for each external interaction
  • Only works when the internals need to access the externals or to alert the internals that an external has a request or made a move

CBE: Entity Class

  • Storage
  • Model the data used by the system
  • Perhaps includes a little behavior associated with the data
  • Passive class. Only works when called.

CBE: Control Class

  • Controls the other classes. Makes things happen.
  • If objects are dynamically created and destroyed in the system, the control class does it

Reality

  • In small systems, the cost of a class for each role may not be warranted. However, in non-trivial systems, it is well worth it
  • The CBE categories are somewhat broad and perhaps not fine-grained enough
  • Real classes will often support many roles
  • Changes to a system often lead to blurred roles

Example

Class Stereotypes

  • An extended set of class roles/types Dragan, Collard, Maletic'10
  • More fine-grained stereotypes
  • Reflect actual use in real-world projects

Taxonomy

  • Data-centric
    • Entity, Minimal Entity, Data Provider, Commander
  • Behavior-centric
    • Boundary, Factory, Controller, Pure Controller,
  • Bad Smell
    • Large Class, Lazy Class, Degenerate, Data Class, Small Class

Data-centric Class Stereotypes

  • Entity
  • Minimal Entity
  • Data Provider
  • Commander

Class Stereotype: Entity

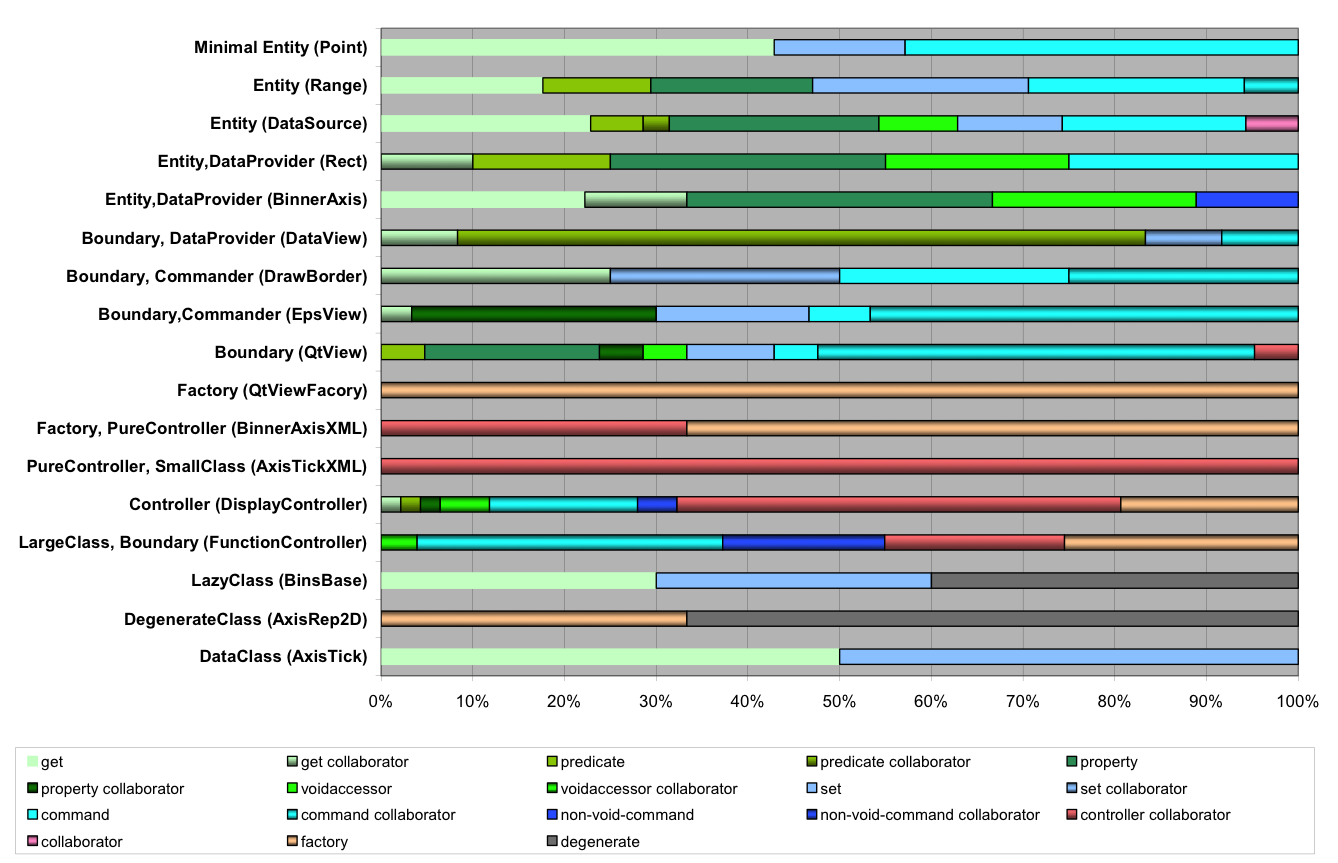

  • HippoDraw Class Range
  • Holds the data model and/or business logic
  • Typically contain accessors and mutators in various proportions
  • Might have a variable percentage of collaborational methods (up to 2/3)
  • They do not have controller methods

Class Stereotype: Minimal Entity

  • Entity with only get/set and command methods
  • A special case of Entity that has only get/set and command methods
  • It encapsulates very trivial entities (e.g., Point)
  • Considered separate because it is a very simple class that does not require much effort to comprehend
  • Can also be considered a Lazy Class

Class Stereotype: Data Provider

  • Holds data and mainly consists of accessors
  • A high percentage of the methods are accessors

Class Stereotype: Commander

  • Holds data and behavior and mainly consists of mutators
  • A large part of the class’s behavior is implemented in command and non-void-command methods, which execute complex changes to the object’s state
  • The changes may also involve objects of different classes.

Behavior-centric Class Stereotypes

  • Boundary
  • Factory
  • Controller
  • Pure Controller

Class Stereotype: Boundary

  • Communicator in a system and has a large percentage of collaborational methods
  • A low percentage of controller and not many factory methods

Class Stereotype: Factory

  • Creator of objects with mostly factory methods

Class Stereotype: Controller

  • Mainly processes data of external objects
  • Updates an entity/model working mainly outside of itself
  • Has almost all controller and factory methods

Class Stereotype: Pure Controller

  • A special case of controller
  • Controller that only works on other objects
  • A strong candidate for the bad-smell God Class if it is a standalone class and consists of many methods

Bad Smell

  • Large Class - Many methods and many roles, e.g., Data Provider, Commander, Controller, and Factory
  • Lazy Class - Almost all get/set methods. May have a large number of degenerate methods
  • Degenerate Class - Half or more of the methods are empty
  • Data Class - Only get/set methods
  • Small Class - A class with only one or two methods

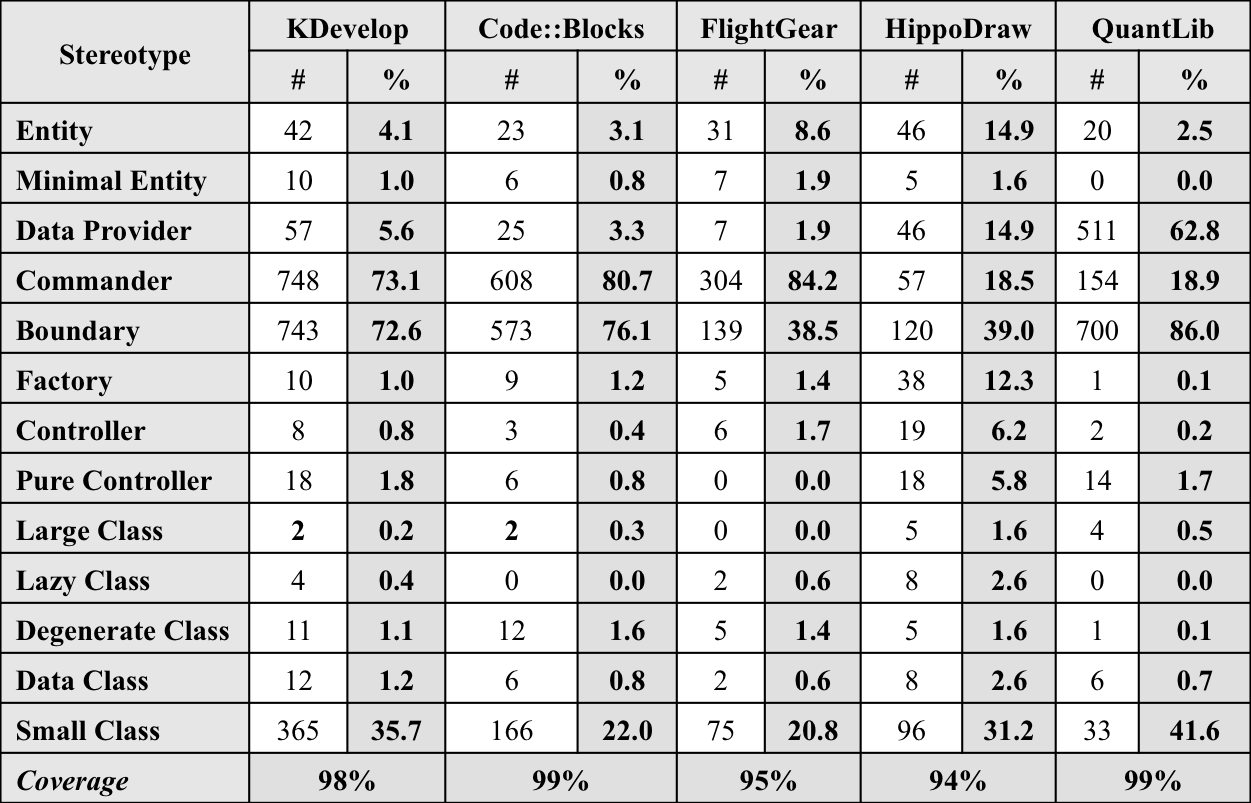

Frequency Distribution

Patterns
